Imagine a world where you can connect all your devices using just one ethernet cable, without having to deal with tangled messes of wires. Sounds like a dream, right?
Well, the HDMI Ethernet Channel (HEC) is here to turn that dream into a reality! This fantastic technology is designed to simplify your AV setup while offering enhanced internet connectivity.
Ready to unlock the power of HDMI with Ethernet and explore its high-speed connection capabilities? Let’s dive in for a better understanding!
Check out my comprehensive Guide to HDMI Cables

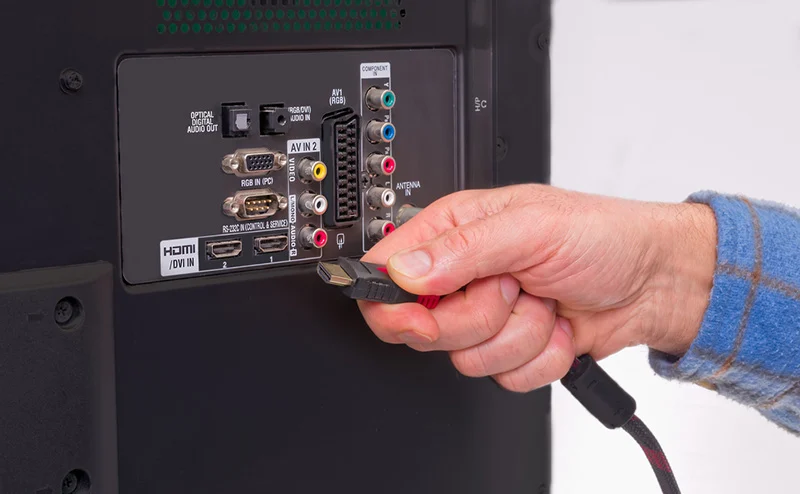

Understanding HDMI with Ethernet
HDMI cables of the standard 1.4 or higher versions support 3D, 4K, deep color and audio return channel (ARC). The HDMI standard 1.4 and higher cables also have an innovative feature called HDMI Ethernet Channel (HEC).
The HEC offers great convenience for transmissions. It enables high-speed internet data transmission through twisting pairs of wires, without affecting the function of other pins in the cable.
This means you can have a lightning-fast internet connection and exceptional audio and video signal quality while using the same cable.
Talk about convenience!
The Evolution of HDMI Cables
Since its introduction in 2002, HDMI cables have transformed the way we experience video and audio, becoming the primary digital replacement for existing analog standards.
With each new version, HDMI has brought us groundbreaking features and capabilities, such as deep color high speed ethernet, improved audio and video quality, audio return channel (ARC), support for 3D and 4K resolutions, and so much more.
The latest version, HDMI 2.2, released in 2017, supports up to 8K resolution, audio return channel (ARC), dynamic HDR, and eARC, showcasing just how far this technology has come.
How HEC Works
HEC functions by using two twisted pairs of wires in the high speed HDMI cable to transmit data in both directions, allowing for a full-duplex connection. This results in a much faster data transfer rate compared to traditional Ethernet cables, which only allow for a half-duplex connection.
However, HEC faced some challenges during its development, such as the rapid evolution of WiFi, which made hard-line connections less popular for consumer use.
Despite these hurdles, HEC has found its place in the world of home entertainment systems and gaming consoles, offering simplified AV setup and enhanced internet connectivity.
Requirements for HDMI Ethernet Channel
To make the most of HEC, you need to have compatible devices and a high speed HDMI cable with Ethernet capabilities. The availability of HEC depends on the HDMI version of your devices and cables.
HEC is included in HDMI version 1.4 and later versions, with compatible devices offering HEC-enabled ports.
Identifying HEC-Enabled Devices
So, how can you tell if your device is HEC-compatible? Start by checking the owner’s manual or looking for HDMI ports labeled as “HEC” on the device itself.
In some cases, manufacturers may not label the ports, but you can still identify HEC-enabled devices by looking for the HEC logo on the product packaging.
Once you’ve confirmed that your devices support HEC, you’re one step closer to experiencing its amazing advantages, such as simplified AV setup and enhanced internet connectivity.

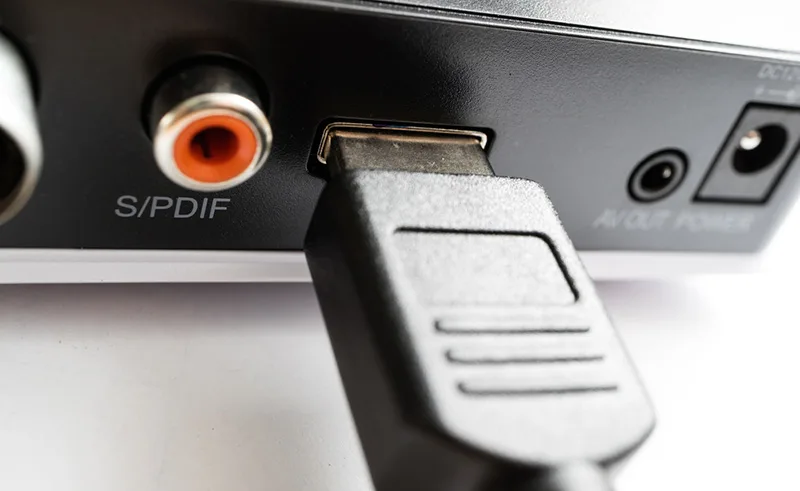

Choosing the Right HDMI Cable with Ethernet
Now that you’ve determined how to identify compatible equipment, it’s time to choose the right high speed HDMI cable with Ethernet.
HDMI cables come in different sizes and have various features. These include standard with Ethernet, digital audio, high-speed with Ethernet and ultra-high-speed with Ethernet.
These cables are capable of transferring data at speeds of up to 100 Mbps. This makes them suitable for both home and business internet use.
When selecting your cable, consider the length and the equipment it will be connecting to. Opt for a high-speed HDMI cable with ethernet that is backward compatible and future-proofed for new installations.
Don’t forget to check the actual specs of the cable and its bandwidth rating to ensure you get the right cable for your needs.
Advantages of Using HEC
Using HEC offers a plethora of advantages. For starters, it allows any internet-enabled HDMI device to share an internet connection via the HDMI link, eliminating the need for a separate Ethernet cable.
It also provides a connection platform that enables HDMI-enabled components to share content between equipment.
In short, HEC makes your life simpler, more efficient, and clutter-free!
Simplified Audio and Video Setup
Who doesn’t love the idea of fewer cables and a more streamlined setup?
By using HEC, you can connect multiple HDMI-enabled devices to a single high speed HDMI cable, eliminating the need for multiple cables and connection points. This not only reduces clutter, but also makes it easier to manage your AV setup.
Say goodbye to tangled cables and hello to a cleaner, more organized entertainment center!
Enhanced Internet Connectivity
HEC doesn’t just simplify your AV setup; it also dramatically improves your internet connectivity.
By allowing internet connection sharing via the HDMI link, HEC eliminates the need for a separate Ethernet cable. This means faster data transfer speeds and more reliable connections, ensuring a smooth and enjoyable streaming experience for all your online content.
HEC is a great way to reduce cable clutter and make your home entertainment setup more efficient. It’s also easy to set up and use, so you can start enjoying your favorite streaming services.
Common Applications of HEC
Although HEC can be utilized in various scenarios, it’s most commonly used in home entertainment systems and gaming consoles.
By providing a high-speed connection and enhanced audio and video data quality, HEC ensures that your home entertainment system and gaming console experiences are top-notch.
Home Entertainment Systems
HEC has revolutionized home entertainment systems by allowing for seamless AV setup and improved internet connectivity.
With HEC, you can connect devices such as smart TV, Blu-ray player, and AV receiver with ease, creating an immersive entertainment experience with minimal cables and clutter.
HEC is compatible with a wide range of devices ensuring that it can cater to your unique home entertainment needs.
Gaming consoles have also greatly benefited from HEC technology. By allowing users to view online games in excellent quality and share their internet via the HDMI link, HEC ensures that your gaming experience is nothing short of extraordinary.
With faster data transfer speeds and enhanced AV quality, HEC takes your gaming sessions to a whole new level!
Troubleshooting HEC Issues
Like any technology, HEC may encounter some issues from time to time. Common problems include compatibility issues between devices and HDMI over Ethernet challenges due to different cable types.
To troubleshoot these issues, proper device configuration and tips for resolving connectivity issues are essential.
Ensuring Proper Device Configuration
To ensure your devices are configured correctly for HEC, first, check the device’s specifications to see if it has the HDMI Ethernet Channel feature.
If your device supports HEC, navigate to the device’s settings menu and look for the HEC option. Enabling this is as simple as a few clicks, and you’ll be on your way to experiencing the many benefits of HEC.
HEC is a great way to streamline your home entertainment setup. It allows you to connect multiple devices to your TV without the need for multiple cables. This means you can enjoy your favorite movies, shows, and games without having to have a problem.
Tips for Resolving Connectivity Issues
If you’re still experiencing connectivity issues after configuring your devices connected, try the following troubleshooting tips:
By following these troubleshooting tips, you’ll be well on your way to enjoying the full potential of HEC.
In conclusion, HEC provides an unparalleled solution for simplifying your AV setup.
It’s an excellent tool for home entertainment systems and gaming consoles alike, offering a streamlined experience with fewer cables and clutter.
By ensuring proper device configuration and troubleshooting connectivity issues, you can unlock the full potential of this high-speed connection technology.
So, are you ready to embrace the power of HEC and elevate your entertainment experience to new heights?
Frequently Asked Questions
Can HDMI be used for Ethernet?
Yes! You can use HDMI for Ethernet with the right cable and compatible devices. To do this, you’ll need either a Standard HDMI Cable with Ethernet or a High-Speed HDMI Cable with Ethernet depending on the resolution you’d like to support. Once you have the right cable and your devices are HEC-compatible, you’re all set to go!
What is the Consumer Electronics Control?
Consumer Electronics Control (CEC) is a protocol within HDMI that allows multiple devices interconnected via HDMI cables to be controlled by one remote control. By enabling streamlined communication ability between displays, it enhances the user experience by simplifying system operation and reducing the need for multiple remote controls.
